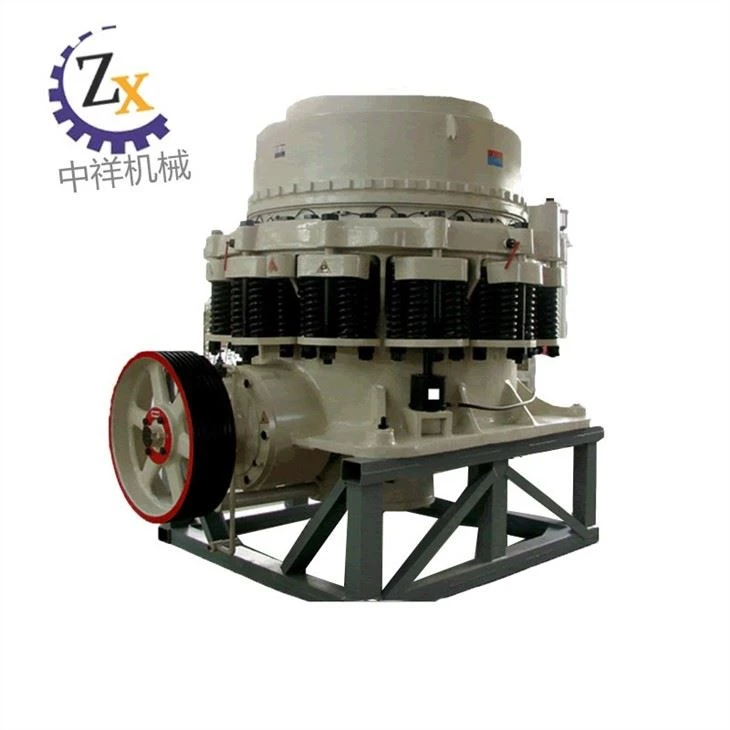

Iron Ore Cone Crusher

Iron Ore Cone Crusher Parameter：

Introduction

Iron ore is an iron-bearing mineral that exists in nature and can be used as a raw material for iron making, mainly including magnetite, hematite, limonite, and siderite. In recent years, with the large-scale mining of domestic iron mines and the mass production of overseas equity mines, the foreign dependence of iron ore has decreased by 10%, but it is still close to 60%.

The Iron Ore Cone Crusher overcomes the contradiction between the output and "fineness" of the traditional cone crusher, adopts the principle of medium and fine crushing of various cavities, and the principle of lamination crushing, so that the proportion of cubes in the crushed products is significantly increased, and the needle pieces The number of stones is reduced, the grain size is more uniform, and the output is stable, which fully meets the production needs.

The working principle

The body of theIron Ore Cone Crusher is located on the reducing spring, and the working part of the crusher is composed of a fixed cone and a moving cone. Both the working surfaces of the two cones are equipped with wear-resistant lining plates, and the space opposite the lining plates forms a crushing cavity. A vibration exciter is installed on the sliding bearing of the moving cone shaft.

The driving force is transmitted to the exciter through the belt and the transmission device, so that it rotates around the center of the moving cone to generate centrifugal force. Squeeze and impact to complete the crushing process of materials.

In the Iron Ore Cone Crusher, the size of the crushing force is determined by the centrifugal force generated by the rotation of the exciter and the moving cone, so for the selected static moment and the rotating speed of the exciter, the size of the crushing force has been basically determined,

It has almost nothing to do with the hardness of the material and the filling rate of the crushing cavity. Adjusting the static torque and rotational speed of the exciter can adapt to various working conditions to generate the required crushing force.

The amplitude of the cone crusher's moving cone is different from that of the ordinary eccentric cone crusher, which is limited by the transmission chain, but depends on the mutual balance between the compression limit of the material layer and the crushing force.

The structure

The main structure of Iron Ore Cone Crusher is horizontal shaft, large and small bevel gear, main shaft, eccentric sleeve, spherical tile, moving cone assembly, fixed cone assembly, main frame, etc. The structure is simple and compact.

Advantages

1.The particle size of the crushed product is fine and uniform, and the crushing effect is remarkable, which creates good conditions for the next grinding of iron ore.

2. The "selective crushing" of iron ore is realized, which not only reduces the wear of the lining plate of the equipment, but also avoids the phenomenon of over-crushing.

3. Large crushing force and high crushing efficiency greatly reduce the crushing process of iron ore beneficiation process and improve the efficiency of the whole beneficiation process.

4. The transmission system of the iron ore cone crusher adopts a flexible transmission, and there is no rigid connection inside the machine, which will not cause damage to the transmission system and the host.

5. The whole crushing process has no noise and no dust pollution, which avoids the environmental pollution caused by the crushing process, and has the advantages of energy saving, low carbon and environmental protection.

Our service

We can tailor your products to ensure your actual benefits; we will provide regular return visit services after you purchase products; we will arrange delivery as soon as possible; help users optimize and maintain equipment.

About us

Zhengzhou Zhongxiang machinery equipment Co., Ltd. is a professional machinery manufacturing and sales of import and export companies. Our products are exported to South and central Asia, Africa and South America.

The company has passed ISO9001, CE certification, market research and development of products and product after-sales service and other aspects of a sound management program. The main products of the company are crushing equipment series, block forming machine and dryer series. Warmly welcome friends from all over the world to visit and buy.

Hot Tags: iron ore cone crusher, China iron ore cone crusher manufacturers
